Magnesium is a lightweight metal widely used in aerospace, automotive, electronics, and medical fields due to its excellent strength-to-weight ratio, machinability, and recyclability. With the increasing demand for non-magnetic materials in high-precision equipment, a common question arises: Does magnesium have magnetic properties?
What is Magnesium
Magnesium (chemical symbol Mg, atomic number 12) is an element in Group 2 of the periodic table, also known as an alkaline earth metal. It is a silvery-white metal with a density of approximately 1.74 g/cm3, about one-third lighter than aluminum. The name is derived from a region near its discovery site (Magnesia in ancient Greece), similar in etymology to the magnet, although magnesium itself is not magnetic. Pure magnesium is relatively brittle at room temperature, but its strength and ductility can be significantly improved by alloying it with elements like aluminum, zinc, and manganese, making it very common in machining and structural components.
What is Magnetism?
Magnetism is the ability of a substance to produce attraction or repulsion under the influence of an external magnetic field, rooted in the magnetic moments generated by the spin and orbital motion of electrons within its atoms or molecules. Different materials exhibit distinct responses in an external magnetic field due to variations in electron configuration, interatomic interactions, and crystal structure. These responses determine the material’s suitability for various engineering and inspection applications.
Classification of Magnetism
Based on the microscopic electronic structure of materials and their response characteristics in an external magnetic field, magnetism can be divided into three basic types.
Ferromagnetism
Ferromagnetic materials possess the ability to magnetize spontaneously. They are strongly attracted by an external magnetic field and retain residual magnetism after the external field is removed (easily magnetized). Representative metals include iron, nickel, cobalt, and most low-alloy steels. Due to their strong magnetic response, these materials should generally be avoided near magneticsensitive equipment.
Paramagnetism
Paramagnetic materials are weakly attracted when a strong external magnetic field is applied, but they do not retain any magnetism once the field is removed (no remanence). Typical paramagnetic materials include aluminum and titanium. Although they are often considered “non-magnetic” in most engineering applications, their paramagnetic response must still be considered in high-precision magnetic field measurements or strong magnetic environments.
Diamagnetism
Diamagnetic materials generate an extremely weak magnetic response in the opposite direction to the external field, manifesting as a slight repulsion. Copper, silver, and magnesium all belong to this category. The diamagnetic response is very weak and usually imperceptible under everyday conditions, thus these materials are often used in scenarios requiring “magnetic neutrality.”
Is Magnesium Magnetic?

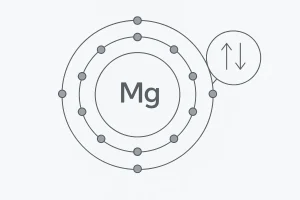

Magnesium is essentially non-magnetic; from a physics perspective, it is a diamagnetic metal. The outermost electrons of its atoms are all paired, and their spins cancel each other out, meaning it possesses no permanent magnetic moment. When magnesium is placed in an external magnetic field, it is not attracted but is subjected to an extremely weak repulsive force. Whether pure magnesium or common magnesium alloys, their magnetism is extremely weak and they can generally be considered non-magnetic materials. This characteristic is why magnesium is favored in devices requiring magnetic neutrality (such as MRI medical equipment, aerospace electronic components, and precision testing instruments).
Can a Magnet Stick to Magnesium?
No, a regular magnet cannot stick to the surface of a pure magnesium block or magnesium alloy part; no visible attraction is generated between the two. This property allows magnesium to be widely used in magnetically neutral structures, medical implants, and non-magnetic testing equipment casings. It should be noted that if the magnesium alloy contains impurities like iron or nickel, a very weak localized magnetic reaction might occur, but the material remains non-magnetic overall.
Comparison of Magnetic Properties Between Magnesium and Other Common Metals
| Metal | Magnetic Type | Is it Attracted by a Magnet? | Cost |
| Iron | Ferromagnetic | Strongly attracted | Low |
| Nickel | Ferromagnetic | Strongly attracted | Medium-High |
| Aluminum | Paramagnetic | Very weakly attracted | Medium |
| Copper | Diamagnetic | Not attracted | Medium |
| Magnesium | Diamagnetic | Not attracted | Lower |
| Zinc | Weak Paramagnetic | Faintly attracted | Low |
| Steel (Most) | Ferromagnetic | Strongly attracted | Medium |
Three Most Magnetic Minerals
- Magnetite (Fe3O4) This is the most magnetic mineral found in nature. Magnetite is an iron oxide that exhibits classic ferromagnetism, is strongly attracted by magnetic fields, and retains remanent magnetism. It’s a vital iron ore and the main material used by ancient peoples to create the first natural compasses (lodestones).
- Maghemite (gamma-Fe2O3) Maghemite is another iron oxide that exhibits ferrimagnetism. Its magnetic strength is very high, second only to magnetite. It often occurs as an oxidation product of magnetite and, due to its excellent stability and magnetic properties, is widely used in the production of magnetic recording media (such as early magnetic tapes and computer hard drives).
- Titanomagnetite (Fe(3-x)TixO4) Titanomagnetite is a solid-solution mineral series between magnetite and ilmenite (FeTiO3). Although the presence of titanium slightly weakens its magnetism compared to pure magnetite, it’s crucial in geosciences. It’s the most common magnetic mineral in volcanic and plutonic rocks, providing key evidence for paleomagnetic studies and rock magnetic analysis of the Earth.
Factors Affecting Magnesium’s Magnetic Properties
Although magnesium is inherently diamagnetic and generally considered “non-magnetic,” its magnetic response in engineering practice may exhibit measurable, though small, variations or localized anomalies due to several factors. Key factors include:
- Impurity Content and Alloying Elements If the alloy or raw material contains magnetic elements such as iron, nickel, or cobalt, even trace amounts can generate a measurable magnetic response in localized areas. For parts with strict magnetic neutrality requirements, control over raw material impurity levels and demanding chemical analysis reports (Certificates of Chemical Composition) is essential.
- Manufacturing Process and Crystal Defects Casting, welding, or cold working (such as cold drawing or cold rolling) can introduce residual stress, dislocations, or phase transitions locally. These microstructural changes sometimes affect electron distribution, consequently influencing the magnetic response at an extremely small scale. For magnetically sensitive products, magnetic inspection or annealing steps should be added to the process specification to eliminate stress.
- Heat Treatment and Temperature Effects Temperature affects a material’s magnetic susceptibility: at high temperatures, electron motion is enhanced, and the magnetic response of certain materials changes. Although magnesium’s diamagnetism does not transition to ferromagnetism at common processing temperatures, the magnetic susceptibility can fluctuate slightly under extreme conditions (very high temperature or strong magnetic fields), which requires evaluation in special applications.
- Surface and Environmental Contamination Magnetic particles adsorbed on the surface (such as iron filings from machining) or magnetic components incorporated into plating/coatings can cause localized magnetic attraction on the surface. Cleaning and inspection before finished products leave the factory can effectively prevent such issues.
Applications of Magnesium in Magnetic Environments
Magnesium’s diamagnetism, low density, and good thermal conductivity give it significant advantages in several high-end fields requiring “magnetic neutrality” or lightweight design. The applications and engineering considerations are detailed below:
Medical Equipment (e.g., MRI Related)
- Application: Brackets in MRI environments, handles for non-magnetic surgical instruments, equipment casings, etc.
- Engineering Points: Ensure the material and surface treatment are free of magnetic impurities; avoid iron filing contamination during assembly and on-site construction; provide material composition and magnetic test reports when necessary.
Avionics and Instrumentation
- Application: Casings for flight instruments, sensor brackets, and structural components for navigation devices, leveraging magnesium to reduce weight and avoid interference with magnetic sensors.
- Engineering Points: Pay attention to electromagnetic compatibility (EMC) measures in assembly and grounding design; magnesium’s good thermal performance also aids in heat dissipation design.
Precision Measurement and Sensor Equipment
- Application: High-precision measuring stages, mounting bases for magnetic sensors, and laboratory equipment casings.
- Engineering Points: Conduct magnetic compatibility assessment during the design phase; structures made of magnesium can significantly reduce the risk of magnetic deviation while meeting stiffness requirements; the production line should include demagnetization/cleaning procedures to eliminate surface magnetic contamination.
Consumer Electronics and Portable Devices
- Application: Laptop computers, camera bodies, and portable instrument casings, combining lightweight properties with a good feel.
- Engineering Points: Surface treatment (anodizing, painting) must be balanced to avoid introducing magnetic materials; avoid using ferromagnetic fasteners near critical sensors during assembly.
Conclusion
Magnesium is a lightweight, diamagnetic metal whose atomic structure dictates that it will not be attracted by magnets nor exhibit a noticeable magnetic reaction. This characteristic makes it extremely valuable in engineering fields demanding magnetic neutrality or high-precision measurements. To learn more about the processing and application of magnesium materials, please contact our engineering team for customized solutions.
