Copper’s density is one of its most defining engineering properties. At room temperature, pure copper has a standard density of 8.96 g/cm³ (8960 kg/m³), a benchmark value widely used for weight calculation, structural loading, thermal design, and materials cost evaluation. Understanding how this value compares with copper alloys such as brass and bronze is essential for accurate material selection in machining, forming, and system-level design.
What Is the Density of Copper
Pure copper has a stable density of 8.96 g/cm³ at approximately 20°C.
Copper is an elemental metal (atomic number 29, atomic mass 63.546 u) with a face-centered cubic (FCC) crystal structure, in which atoms are tightly and uniformly packed. This ordered packing results in minimal internal voids, which is why the density of high-purity copper is both high and predictably consistent across engineering conditions.
Minor variations in measured density arise from temperature and trace impurities, but for engineering calculations, 8.96 g/cm³ remains the standard reference value.
Purity and Density Stability of Copper
Commercial copper is refined to high purity through smelting and electrolytic processes, often reaching 99.9% purity (e.g., C11000) or higher. At this purity level, the density remains very close to 8.96 g/cm³, with only slight differences caused by oxygen content or refining methods.
| Grade | Typical Purity | Key Feature | Density (g/cm³) |
|---|---|---|---|
| C10100 | ≥ 99.99% | Oxygen-free, highest conductivity | ~8.96 |
| C10200 | ≥ 99.95% | Very low oxygen, stable electrical performance | ~8.95 |
| C11000 | ≥ 99.90% | General engineering and machining grade | ~8.94 |
These variations are too small to influence weight or load calculations, but they do affect conductivity and application choice—which is why different copper grades exist in electrical, thermal, and structural applications.
What is the Density of Copper Alloys?
The density of copper alloys varies because alloying elements change both the atomic mass and the way atoms pack in the crystal structure. As different alloying elements are introduced, the resulting material may become slightly lighter or heavier than pure copper.

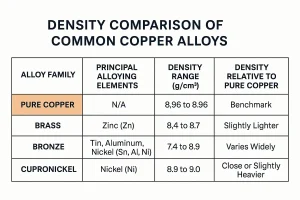

Density Comparison of Common Copper Alloys.
Brass (Cu-Zn Alloys)
Brass is primarily a copper–zinc alloy. Because zinc has a lower density than copper, most brass grades are slightly lighter, typically ranging from 8.4 to 8.7 g/cm³. The exact density depends on the zinc content and any additional elements used to adjust strength or machinability.
Bronze (Cu-Sn / Cu-Al / Cu-Ni Systems)
Bronze refers to a family of copper alloys that use tin, aluminum, or nickel as the principal alloying element. The density of bronze varies more widely than brass, generally falling between 7.4 and 8.9 g/cm³. Tin bronzes tend to remain close to copper’s density, while aluminum bronzes can be lighter, and nickel bronzes can be heavier and stronger.
Cupronickel (Cu-Ni Alloys)
Cupronickel is a copper alloy where nickel is the primary addition. Since nickel has nearly the same density as copper, cupronickel alloys typically have densities between 8.9 and 9.0 g/cm³—very close to or slightly higher than pure copper. These alloys are valued for their corrosion resistance and stability in marine and high-pressure environments.
Factors Affecting Copper Density
The main factors influencing the actual density of copper and its alloys include:
- Temperature: Copper follows the principle of thermal expansion. As temperature rises, the volume expands, and the density slightly decreases.
- Alloying Elements: The addition of elements with different atomic masses and volumes significantly changes the alloy’s overall density.
- Porosity: Internal voids or gaps (porosity) within the material will cause the measured actual density to be lower than the theoretical density.
-
How to Calculate the Density of Copper
To determine the density of a copper part, you only need two values: its mass and its volume. The method varies depending on whether the shape is regular or irregular.
Method 1: Archimedes Principle (for Irregular Shapes)
Used when the copper piece has curved or complex geometry.
-
Measure the mass of the part in air.
-
Fully submerge it in water and measure its apparent mass in water.
-
The difference between the two measurements is used to determine the volume of the displaced water.
-
Divide the mass by the calculated volume to obtain the density.
Suitable for castings, curved surfaces, and components without standard geometry.
Method 2: Direct Measurement (for Regular Shapes)
Used when the part has a standard shape.
-
Measure the mass.
-
Use calipers or micrometers to measure dimensions such as length, width, height, or diameter.
-
Calculate the volume using the appropriate geometric formula.
-
Divide the mass by the volume to get the density.
Suitable for copper rods, plates, blocks, cylinders, and machined parts with clear dimensions.
-
Comparison of Copper Density with Other Metals
Copper (8.96 g/cm³) is considered a moderately dense metal among commonly used materials.
| Common Metal | Density (Approx. g/cm³) | Characteristic Relative to Copper |
| Aluminum (Al) | 2.70 | Light: About 70% lighter than copper. |
| Zinc (Zn) | 7.14 | Lighter: A major component in brass. |
| Iron (Fe) | 7.87 | Slightly Lighter: A common structural material. |
| Copper (Cu) | 8.96 | Benchmark: Moderately high density. |
| Silver (Ag) | 10.49 | Heavy: About 17% heavier than copper. |
| Lead (Pb) | 11.34 | Heavy: Much denser than copper. |
Practical Applications of Copper Density
Copper’s specific density is not just a data point; it holds direct practical value across various industries, often relating directly to mass, volume, and weight calculations.
- Weight and Load Calculation: Density determines the final weight of large electrical systems (like transformers and high-power cables), which directly impacts structural support and transportation costs.
- Structural Stability: For plumbing and piping installations, the density of copper and its alloys is critical for calculating the total structural load of the system when filled with fluid.
- Purity and Quality Control: Density is a key tool for alloy identification and purity checks. By precisely measuring the density, manufacturers can verify that the material meets exact specifications for composition and purity.
Frequently Asked Questions
Here are answers to some of the most common questions regarding copper density and related material properties:
What is the relative density of copper?
Copper’s relative density is the ratio of copper’s density to the density of water at 4°C. Since water’s density is approximately 1.0 g/cm³, the relative density of copper is about 8.9. Relative density is a dimensionless (unitless) number.
What is the density of scrap copper?
The density of scrap copper depends on its form and compaction level. If referring to a pure, compacted copper block, its density is close to pure copper, around 8.9 g/cm³. If referring to loose, uncompacted scrap (like wire bundles or shavings), the measured apparent density will be significantly lower due to internal voids.
What are the three densest metals?
Based on current scientific measurements, the three densest elemental metals are:
- Osmium (Os): Density is about 22.59 g/cm³
- Iridium (Ir): Density is about 22.56 g/cm³
- Platinum (Pt): Density is about 21.45 g/cm³
Why are electrical wires made of copper rather than the lighter aluminum?
Although aluminum is lighter, copper has superior electrical conductivity, better mechanical strength, and higher resistance to oxidation. These properties make copper the preferred material for most power transmission and electronic applications.
Conclusion
Copper’s density (approximately 8.96 g/cm³) is a core attribute that defines its role as a critical engineering material. The density of copper alloys varies widely based on composition, with temperature, porosity, and alloying being the main influencing factors. Accurate knowledge of copper and its alloys’ density is crucial for precise material quantity calculation, structural weight management, and ensuring electrical efficiency and integrity.
